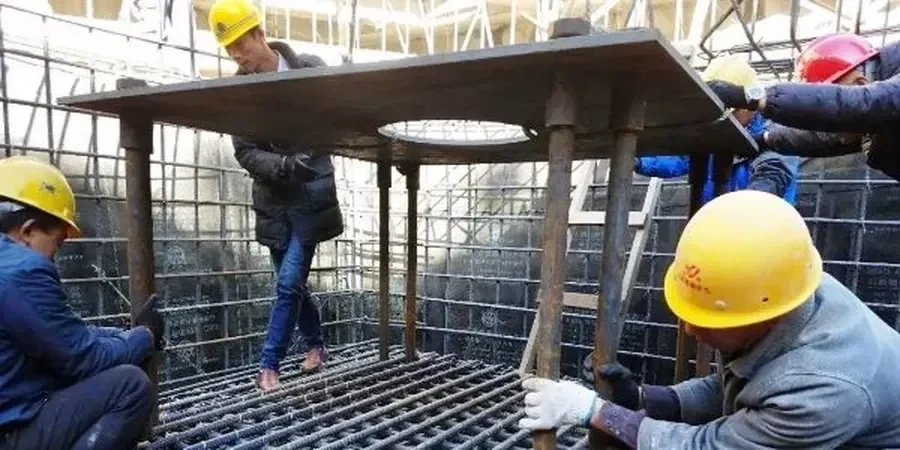

Knoxville sits in a unique seismic position within the East Tennessee Seismic Zone, a region that experiences frequent, albeit mostly minor, tremors along ancient faults like the New York–Alabama Lineament. While the city is not on a major plate boundary, the residual soil from weathered Cambrian-age limestone and shale, combined with the area's karst topography, creates site conditions where ground motion can be amplified unpredictably. The variable depth of bedrock across the Tennessee River valley means that a one-size-fits-all seismic approach simply does not work here. For critical structures, base isolation design must start with a thorough understanding of the subsurface profile. Our laboratory supports this by characterizing the dynamic properties of local foundation soils, data that feeds directly into the site-specific response spectra required by ASCE 7 and IBC Chapter 16. Before a single isolator is specified, we run advanced cyclic testing on soil samples obtained through SPT drilling to determine modulus reduction and damping curves that are essential for accurate time-history analysis of the isolated structure.
In the East Tennessee Seismic Zone, the biggest design variable isn't the earthquake magnitude—it's the stiffness contrast between residual clay and the irregular rockhead below it.
Process overview
The core of our testing program for base isolation projects revolves around the resonant column and cyclic triaxial apparatus, equipment that measures shear wave velocity and dynamic soil behavior at strain levels ranging from very small to failure. We prepare specimens from undisturbed Shelby tube samples, extracting them carefully to preserve the natural moisture content typical of Knoxville's stiff red clay residuum. What we see frequently in the lab is a significant variation in plasticity between samples taken just a few feet apart, a direct result of the irregular decomposition of the underlying Chickamauga Group limestone. One sample might contain a high percentage of chert fragments, while the next is a fat clay with PI values exceeding 30. This variability directly influences the selection of the lower-bound and upper-bound soil profiles used in isolator design. We also integrate the dynamic soil properties with a site-specific hazard assessment, ensuring the ground motion records selected for the analysis match the target uniform hazard spectrum for the 2475-year return period event that governs design in this region.
Local context
A recent project near the University of Tennessee campus involved a five-story medical research facility where the geotechnical investigation revealed a buried sinkhole filled with soft organic silt directly beneath the planned isolation plane. The original design assumed a competent bearing stratum for the isolation pedestals, but the reality was a 15-foot-deep pocket of compressible material that would have introduced differential settlement and compromised the uniform gap required around the isolated superstructure. This scenario is far from rare in Knoxville's karst terrain. If the dynamic properties of that soft fill had been ignored, the isolation system's period would have shifted away from the design target, potentially increasing, rather than reducing, the seismic demand on the structure. We addressed this by running site-specific response analyses on the fill material, then collaborating with the structural engineer to adjust the isolator stiffness and the moat width. It is a practical example of why the geotechnical and structural design loops must be tightly integrated, moving beyond generic soil profiles to actual measured low-strain stiffness and damping values.
Common questions
What is the typical cost range for the dynamic laboratory testing needed for a base isolation design in Knoxville?
The laboratory testing program to support base isolation design, including resonant column and cyclic triaxial tests with site-specific ground motion characterization, typically ranges from US$4,650 to US$8,680 depending on the number of samples and strain levels required to capture the full nonlinear behavior of the local residual soils.
Why is dynamic testing necessary if the isolated structure is decoupled from the ground?
Even though the isolators decouple the superstructure, the foundation and the soil beneath the isolation plane still move with the ground. The stiffness and damping of the soil directly influence the input motion transmitted to the isolators. If the soil is softer than assumed, the isolation period could lengthen into a range where displacements become unmanageable or where the isolation system loses efficiency.
How does the karst geology in Knoxville affect the base isolation strategy?
The reference range for this service in Knoxville is US$4.650 - US$8.680. The final price depends on the project scope and volume.
Which parameters from the ASTM D3999 cyclic triaxial test are most critical for the isolator selection?
The most critical outputs are the shear modulus reduction curve (G/Gmax versus cyclic shear strain) and the equivalent viscous damping ratio curve. These two parameters define how the soil softens and dissipates energy during strong shaking, directly impacting the spectral acceleration demands on the isolated structure and the required isolator displacement capacity.
Do you perform the structural design of the isolation system, or just the soil testing?
Our role is focused entirely on the geotechnical laboratory characterization and site-specific ground motion analysis. We provide the dynamic soil properties and input ground motions to the structural engineering team, who then perform the detailed design and modeling of the elastomeric or sliding isolators, the moat walls, and the utility connections.
